PRODUCT DETAIL

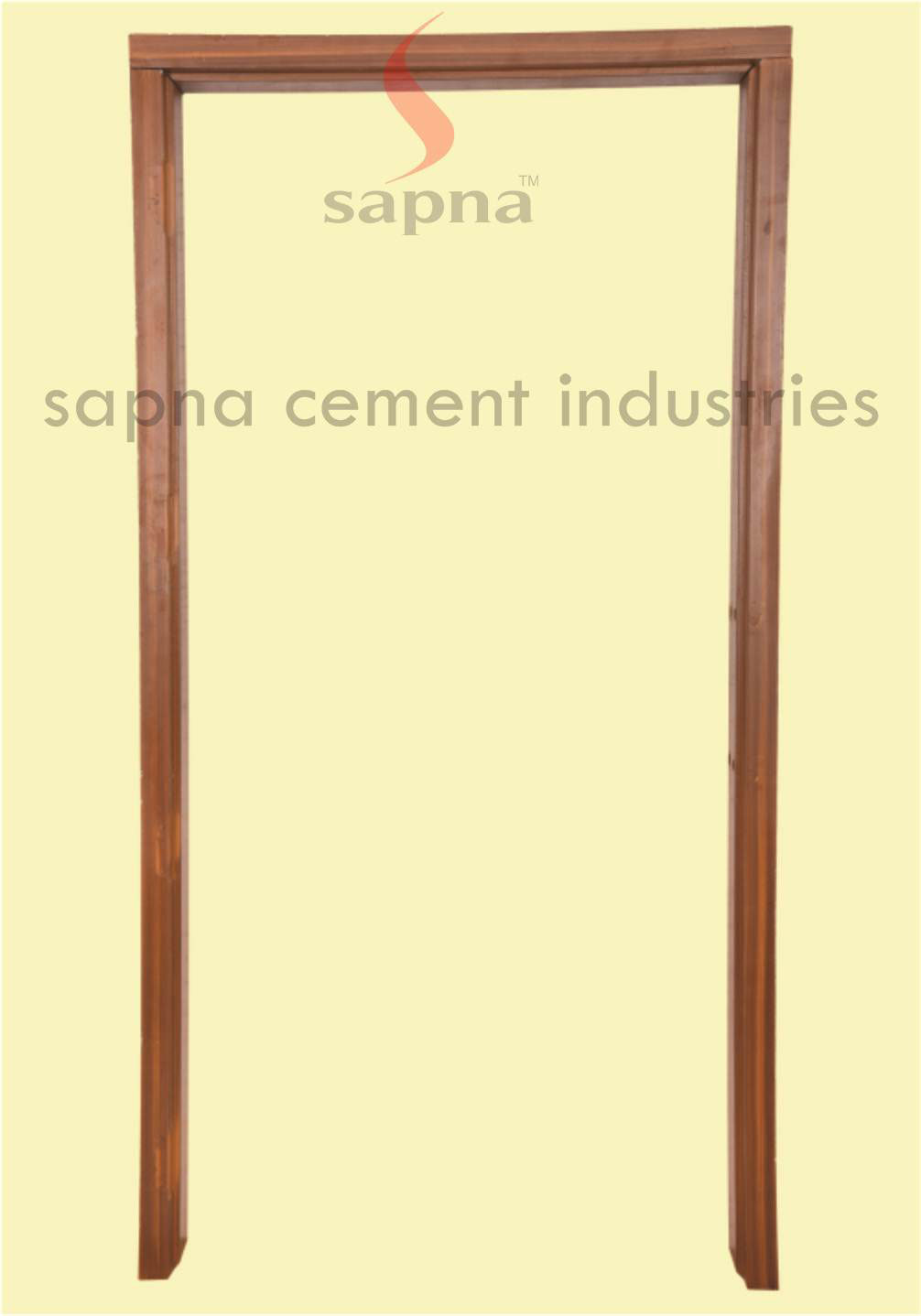

Rcc Door Frame Size 6.5 X 2.0, 2.5, 3.0, 3.5 Ft.
Thickness 6.0 X 2.5
Finish WOODEN COLOUR
No. Of Psc Per Set : 3
Approx Area Per One Psc. 16 Ft.
Approx Weight 90 Kg Per Psc.
APPLICATION/CONCEPT BATHROOM/BADROOM/MAIN DOOR /GALLARY
METERIAL RCC

Download Pdf

SIZE 6 X 2.5 RCC Door Colour Pdf
Sr. description Wooden Frame Iron frame R.C.C door frame Benefits
1 Cost Expensive Expensive Economical 30-40% Saving
2 Material Wood iron R.C.C. More Stronger
3 Termite/ corrosive Not Resistant Not Resistant Resistant More Durable
4 Fire Not Resistant Resistant Resistant Safety Benefits
5 Water Shape changes due to expansion Corrosive of frame No Effect Restores Beauty
6 Handling Not Easy Not easy Easy Speed up the work

1. Termite proof
2. Weather resistant
3. Pests & Other Micro Organism Resistant
4. Fire resistant
5. Elegant Designs
6. Durable
7. Excellent Surface finishing with Rock strength
8. Dimensionally accurate, Easy to assemble
9. Robust Construction
10. Superior in Quality
11. Corrosion Resistant
12. Economical : Compared to wooden frames and iron frames
13. Eco-friendly building material.
14. Packed in corrugaged boxes for safe transport and storage
15. Delivered in 3 pieces for easy assembly at site
Following are the technical specifications of various product:

sr Description Size and technical specification
1 Cross section of members of door frames (for normally used single rebet frames) Both in chamfered & molded patterns at exposed corners.
2 Overall height of door frames in ft. 6.5 X2.0 , 6.5 X 2.5 , 6.5 X 3.0 , 6.5 X 3.5
3 Overall width of door frame in inch 4.O X 2.5 , 5.O X 2.5 , 6 X 2.5 , 10x2.5
4 Minimum grade of concrete as per IS Code 6523 M-40
5 Longitudinal bars 5 mm dia 3 Nos. M. S. bars.
6 Other bars 5 mm dia 3 nos. M. S. bars.
7 Quality of M. S. bars. used Most superior quality
8 Provision of Hinge Blocks 3 Nos. White Polyacryalic blocks for each vertical member.
9 Provision for tower bolt fixing 2 Nos. White Polyacryalic blocks for each horizontal member.
10 Provision of holes for aldrops 2 Holes on each vertical members of 16 mm dia.
11 Provision for Holdfast 2 Nuts embedded on back side of each vertical member.
12 Type of casting and curing Factory made product. Casting done on table vibrator and curing in tank/pond in factory.
13 Packing style of finished product Each vertical and horizontal member supplied in 2 ply corrugated box.
14 Joint in Masonry By cement mortar during errection of masonry without the possibility of joint cracks (Homogenous Joints)
15 Type of painting No need of painting
